Dehumidifiers

  • favicon
    Dehumidifiers
  • EVO SOLACE | DEHUMIDIFICATION

Evoheat is at the forefront of indoor pool room dehumidification. With a comprehensive range for both the domestic and multi-functional commercial applications, they have the dehumidification system solution to suit all needs.

The EvoHeat range is available in many sizes and configurations for domestic indoor pools to large athletic pools, natatoriums in schools and universities, commercial pools, hotel leisure pools and aquatic centers and water parks. See below some of the model specifications and contact us today for a FREE indoor pool room evaluation

Solace Domestic

Domestic Indoor Pool
Dehumidifier

Solace Commercial

Commercial Indoor Pool
Dehumidifier

Solace Universal

Commercial Multifunctional
Indoor Pool Dehumidifier

The Evoheat range consists of 3 dehumidifier systems.

  • Solace Domestic: Domestic indoor pool dehumidifier
  • Solace Commercial: Commercial indoor pool dehumidifier
  • Solace Universal: Commercial multi-functional indoor pool dehumidifier

We all know how wonderful an indoor pool is but have you ever stopped and though about how it could be causing you harmful damage to your health and the surroundings? Have you ever experienced that odor you sense when you enter an indoor pool?

That is elevated humidity combined with pool pollutants. It’s not only uncomfortable for us and the environment it can cause many other issues with the surrounding that you many not be aware of!

You may experience poor health due to high chemical concentration in the air and mold. You may see, corrosion damage to the building components and fittings, in particular metal and concrete and you may notice higher operating costs due to the need to supply fresh cold air into the room to combat the humidity and odors.

Dehumidifiers are designed to remove excess humidity from your indoor pool air and deliver ventilation to control pollutants caused from normal pool activity.  There are many advantages of using swimming pool dehumidifiers such as having control over your indoor temperature and maintaining healthy and comfortable humidity levels.

The Evo Solace dehumidifier is designed to remove the moisture from the air in the room without losing the warmth contained within.  The warm moist air is drawn through the base of the unit and passes over a cold coil to remove the moisture and chemicals. The air then passes through a hot coil which replaces the heat in the air. The result – drier air.

The Solace Domestic is designed to be simple to install, operate and maintain.  Simply mount the Solace unit onto a wall in the pool room, plug the unit into an available power point and direct the drain water back into the pool. Set your desired humidity level and leave the Solace to do the rest – its that easy!  Depending on the size of the room and intended usage, more then 1 Evo Solace unit may be required.

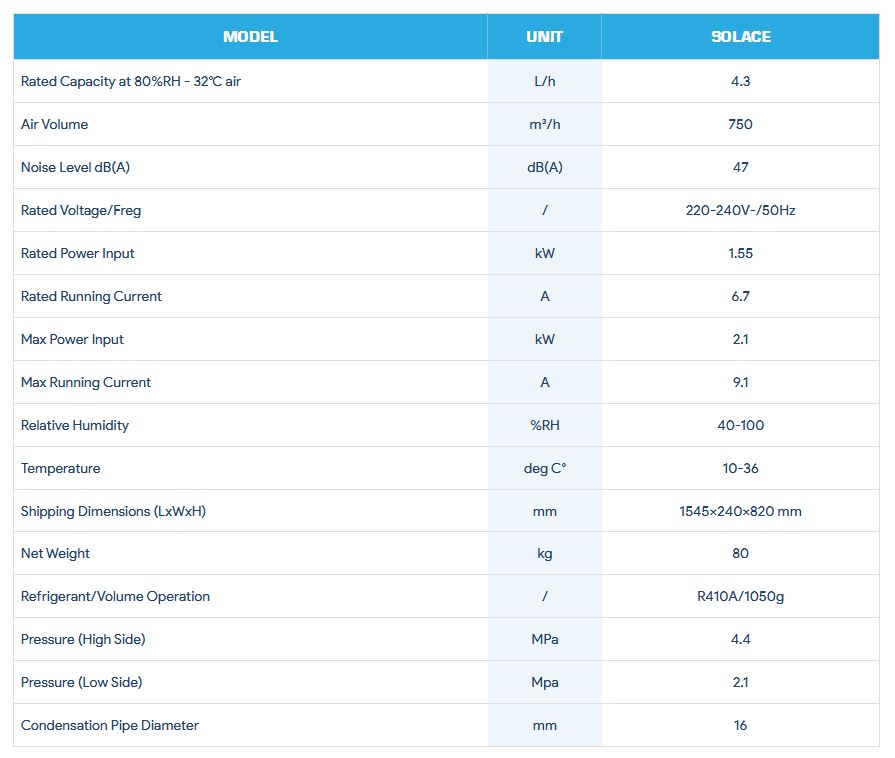

EVO SOLACE DOMESTIC

The Evo Solace dehumidifier is designed to remove the moisture from the air in the room without losing the warmth contained within.  The warm moist air is drawn through the base of the unit and passes over a cold coil to remove the moisture and chemicals. The air then passes through a hot coil which replaces the heat in the air. The result – drier air.

The Solace Domestic is designed to be simple to install, operate and maintain.  Simply mount the Solace unit onto a wall in the pool room, plug the unit into an available power point and direct the drain water back into the pool. Set your desired humidity level and leave the Solace to do the rest – its that easy!  Depending on the size of the room and intended usage, more then 1 Evo Solace unit may be required.

  • Reduced running costs
  • Improved air conditions
  • Improved comfort levels
  • Low noise operation
  • Improved health and safety conditions
  • Simple installation & sleek design
  • Dried Air: Designed to remove the moisture from the air in the room without losing the warmth contained within.
  • The warm moist air is drawn through the base of the unit and passes over a cold coil to remove the moisture and chemicals. The result = drier air.
  • For best results, we recommend that the room temperature is maintained within 5°C of the pool temperature.
  • Simple to install, operate and maintain.
  • Simply mount the Solace unit onto a wall in the pool room, plug the unit into an available power point and direct the drain water back into the pool.
  • Set your desired humidity level and leave the Solace to do the rest – it’s that easy!

DOWNLOAD BROCHURE

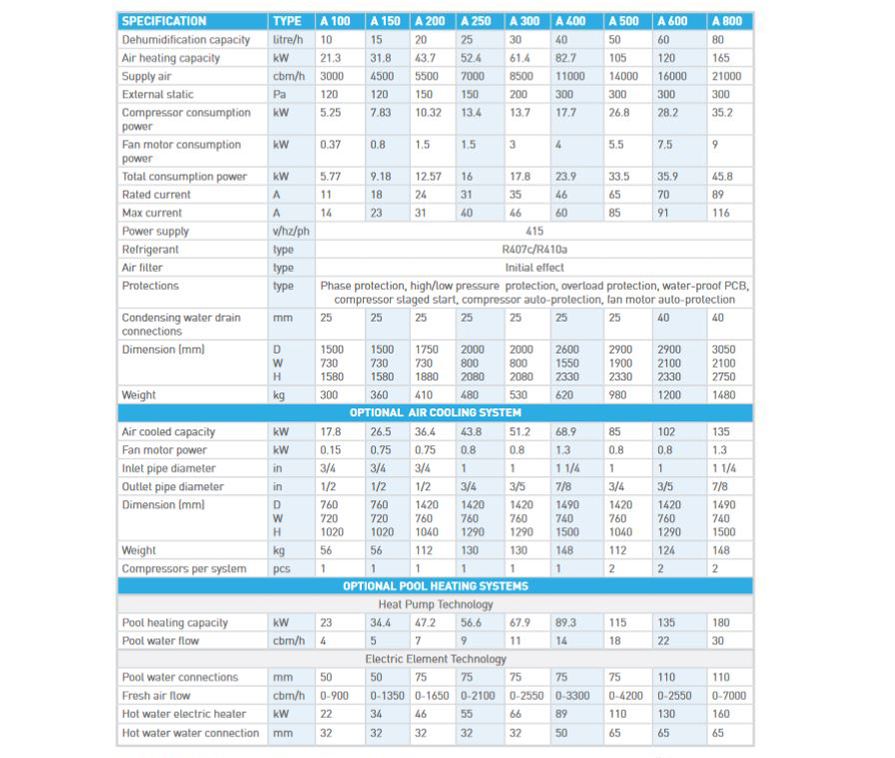

Solace Commercial Specifications

Aquatight-Saturn-Pro-Brochure-r

EXCEPTIONAL PERFORMANCE & LOW OPERATING COSTS

Evo Advanced DHP-R series delivers pool heating with exceptional performance, low operating costs & a C.O.P. as high as 5.4.

Combine your Evo pool heat pump with a pool blanket &/or your solar PV for the ultimate energy
efficient pool heating!

CUTTING EDGE FULL COLOUR TOUCHSCREEN CONTROLLER

Featuring an easy to use,
intelligent full colour touch screen controller that allows you to maintain your pool temperature to within 0.1 degree while delivering optimum performance.

WI-FI Control

Control your Evo Advanced DHP-R heat pump anytime, anywhere with the smart
Wi-Fi controller app. Available for iOS and Android, the smart phone controller app offers you an
easy and convenient way to monitor and control your pool temperature.

HEATING & COOLING MODES

The Advanced DHP-R series is equipped to automatically heat or cool your pool water based on your set temperature - so you can be sure your pool is always at your desired temperature!

VERY QUIET OPERATION + DUAL SPEED FANS

Our low noise fan blades ensures minimal operating noise which is ideal for you and your neighbours! Plus, the dual speed fan allows you to run your heat pump during the night with even further reduced noise levels. The fan is able to operate on a lower RPM on a timer or ambient temperature basis. * Dual speed fans available on selected models - refer to website for most up to date models.

LOW AMBIENT AIR PERFORMANCE

The Evo Advanced DHP-R heat pump offers low running times because of its higher heat outputs when it counts.

304 STAINLESS STEEL CABINET

The 304 stainless steel cabinet will ensure long term corrosion
resistance.

DUAL DEFROST TECHNOLOGY

Our Thermotec Element Defrost technology and auto defrost system ensures your heat pump is defrosting less and heating more often, maximizing the
heating capacity in colder weather when its needed the most.

TITANIUM HEAT EXCHANGER

The titanium thread heat exchanger ensures maximum heat transfer with the ultimate corrosion resistance, improving the heat transfer efficiency by up to 30% compared to standard heat exchangers.

ELECTRONIC EXPANSION VALVE 2 TECHNOLOGY

Electronic Expansion Valve 2 Technology is the absolute latest and the best possible refrigeration control system available in the market today. This results in higher C.O.P. and improved efficiency of up to 20% compared to other
commercial heater brands.

LATEST CORROSION PROTECTION TECHNOLOGY

The bluetec hydrophilic coating on the condenser fins is the latest technology in corrosion protection allowing your heat pump to
maintain its high efficiency for many years to come.

Inexpensive to run

A fraction of the running cost of Gas pool heating

Swim in a heated pool all year

Unlike solar
heating which only effectively extends the
swimming season by a few months, an Aquatight
Heat Pump heats continuously even when it’s cool
and cloudy

Incredibly efficient

Japanese inverter technology
- massive 6.2 COP (Coefficient of Performance)
- 15-30% higher efficiency than competitive units

Top quality, maximum durability Titanium Heat
Exchanger

Installation is quick and easy

You could be
swimming in a warm pool in no time

Attractive, unobtrusive heating unit

Model Specifications:

IM13 – 13kW

  • Advised Pool volume (L): 30,000 – 55,000*
  • Power Supply: 230V / Single phase / 50Hz
  • Heating Capacity / COP at 50% Capacity:-
    • At 26°C air Temp / Water Temp to 26°C / 80% Humidity
      • 8 kW
      • COP (50%) 11
    • At 15°C air Temp / Water Temp to 26°C / 70% Humidity
      • 9kW
      • COP (50%) 6.8
    • Rated Input Current at 15°C Air (A): 0.96 – 7.52
    • Max Input Current (A): 12
    • Sound pressure at 1m dB(A): 42.1 – 50.7
    • Dimensions (mm) L x W x H: 961 x 340 x 658
    • Weight: 50kg


IM15 – 15kW

  • Advised Pool volume (L): 35,000 – 65,000*
  • Power Supply: 230V / Single phase / 50Hz
  • Heating Capacity / COP at 50% Capacity:-
    • At 26°C air Temp / Water Temp to 26°C / 80% Humidity
      • 15 kW
      • COP (50%) 10.9
    • At 15°C air Temp / Water Temp to 26°C / 70% Humidity
      • 5kW
      • COP (50%) 6.6
    • Rated Input Current at 15°C Air (A): 1.17 – 9.6
    • Max Input Current (A): 13.5
    • Sound pressure at 1m dB(A): 41.3 – 54
    • Dimensions (mm) L x W x H: 961 x 340 x 658
    • Weight: 52kg

Saturn Heat Pump Specifications:
• Power Supply: 230V / Single phase / 50Hz
• Water pipe in-out size (mm): 48.3
• Dimensions (mm) L x W x H: 872 x 349 x 654
• R410a Refrigerant

Model Specifications:
iXB09:
Advised Pool volume (L): 20,000 to 35,000*
Heating Capacity / COP:-
At 26°C air Temp / Water Temp to 26°C / 80% Humidity
- 8.0kW
- COP 10.4 – 5.6

At 15°C air Temp / Water Temp to 26°C / 70% Humidity
- 6.0kW
- COP 6.1 – 4.1
Rated Input Current at 15°C Air: 1.48 – 6.0
Sound pressure at 1m dB(A): 40.8 – 51.1
Weight: 46kg


iX09:
Advised Pool volume (L): 20,000 to 40,000*

Heating Capacity / COP:-
At 26°C air Temp / Water Temp to 26°C / 80% Humidity
- 9.2kW
- COP 11 – 5.7

At 15°C air Temp / Water Temp to 26°C / 70% Humidity
- 7.0kW
- COP 6.2 – 4.3
Rated Input Current at 15°C Air: 1.48 – 7.0
Sound pressure at 1m dB(A): 40.6 – 52.5
Weight: 47kg

iX12:
Advised Pool Volume (L): 30,000 to 55,000*
Heating Capacity / COP:-
At 26°C air Temp / Water Temp to 26°C / 80% Humidity
- 12.5kW
- COP 12.1 – 5.9

At 15°C air Temp / Water Temp to 26°C / 70% Humidity
- 9.0kW
- COP 6.1 – 4.2
Rated Input Current at 15°C Air: 1.57 – 8.7
Sound pressure at 1m dB(A): 42.9 – 53
Weight: 49kg

Specifications correct at the time of publishing and are subject to change without notice.

*The Advised Pool Volume indicated is a guide only and applies under following conditions: Swimming pool is well covered; system runs at least 15 hours per day;
If these conditions are not met, please kindly ask your nearest Southside Pool store for advice.

EXCEPTIONAL PERFORMANCE & LOW OPERATING COSTS

Evo Fusion-i series
delivers pool heating with exceptional performance, low operating costs & a C.O.P. as high as 12.57 .

Combine your Evo Fusion-i pool heat pump with a pool blanket &/or your
solar PV for the ultimate energy efficient pool heating!

LATEST STEPLESS DC FULL INVERTER TECHNOLOGY

Incorporating the latest full
inverter technology - including DC stepless compressors, fans, and PC boards; the Fusion-i
range will automatically adjust it’s power and electricity consumption based on the exact
requirements of your pool. This ensures your pool reaches the desired temperature
faster, and is maintained more efficiently - SAVING YOU ON YOUR HOUSEHOLD ENERGY BILL.

TOUCHSCREEN CONTROLLER

Designed with an intelligent LCD touch screen controller, you can easily increase or decrease water temperatures and switch between heating and cooling modes.

HEATING & COOLING MODES

The Fusion-i series is equipped to automatically heat or cool your pool water based on your set temperature - so you can be sure your pool is
always at your desired temperature!

VERY QUIET OPERATION

Our low noise fan blades ensures minimal operating noise which is ideal for you and your neighbours!

AUTOMATIC DEFROST

Designed with a four-way valve reverse defrost method, the Fusion-i series provides automatic defrosting and allows the heat pump to work
efficiently in ambient air temperatures as low as -7°C.

TITANIUM HEAT EXCHANGER

The titanium thread heat exchanger ensures maximum heat transfer with the ultimate corrosion resistance, improving the heat transfer efficiency by up to 30% compared to standard heat exchangers.

ELECTRONIC EXPANSION VALVE 2 TECHNOLOGY

Electronic Expansion Valve 2 Technology is the absolute latest and the best possible refrigeration control system available in the market today. This results in higher C.O.P. and improved efficiency of up
to 20% compared to other commercial heater brands.

LATEST CORROSION PROTECTION TECHNOLOGY

The bluetec hydrophilic coating on the condenser fins is the latest technology in corrosion protection allowing your heat pump to maintain its high efficiency for many years to come.
